Oil Flooded Compressor

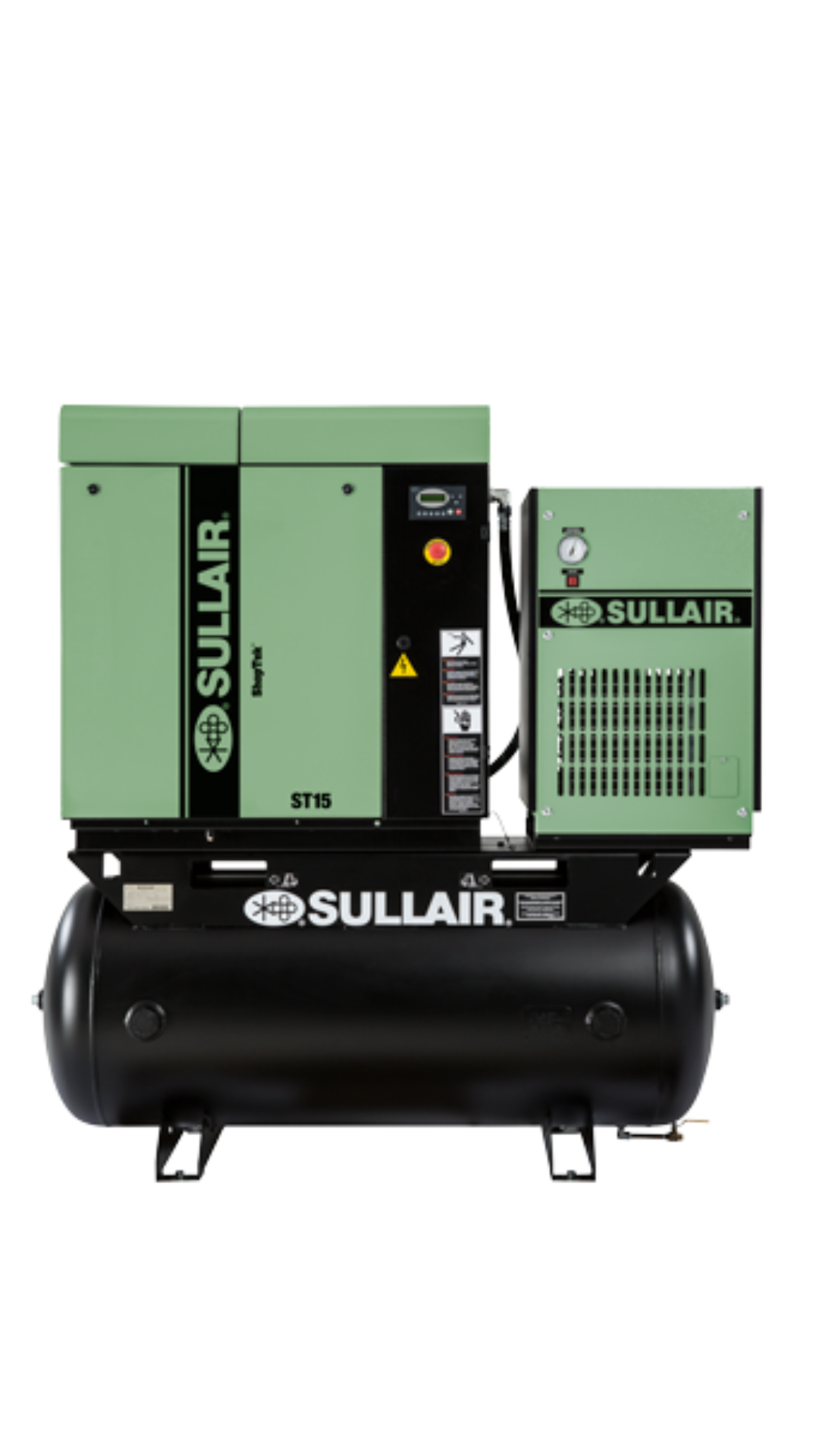

ShopTek® Series Lubricated Rotary Screw Air Compressors

ShopTek® Series Lubricated Rotary Screw Air Compressors

The ShopTek® Series redefines industry standards for continuous duty compressors in the 5 to 100 hp range with its simple, compact design. Built for exceptional reliability and extremely low maintenance, ShopTek compressors are an ideal solution for general manufacturing, auto body shops, and commercial laundries.

Key Features:

• Reliable Performance: The legendary Sullair air end, with a patented rotor design and long-life bearings, ensures worry-free operation and a continuous supply of compressed air.

• Energy-Efficient: Premium efficient motors and a Sullair air end designed for maximum output with minimum power consumption provide a superior energy advantage.

• Quiet Operation: A sound enclosure reduces noise levels to as low as 66 dBA, making the compressor suitable for installation in various work environments.

• Intelligent Controls: The microprocessor controller displays all essential parameters and uses transducers to control pressure, minimizing off-load running and saving energy costs.

• 5-Year Emerald Warranty: ShopTek compressors are covered by a 5-year Emerald Warranty on major components, including the air end, motor, coolers, and receiver.

Technical Specifications:

• Power: 5-100 hp (4−75 kW).

• Pressure: 115-175 psi (8−12 bar).

• Flow: 16−443 cfm (0.47−12.55m3/min).

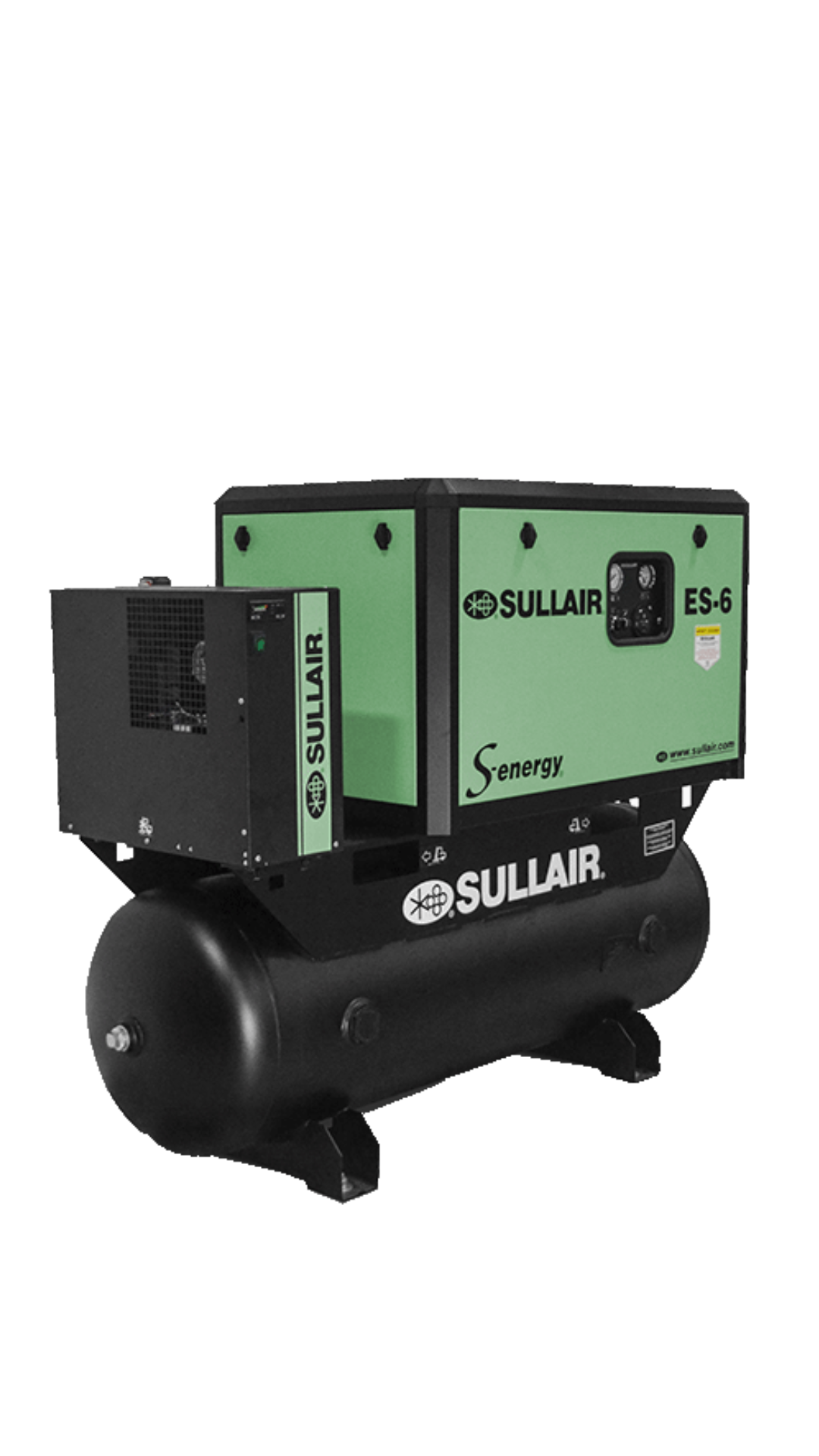

S-energy® ES-6 (5-10 hp)

S-energy® ES-6 (5-10 hp)

The S-energy® ES-6 is a compact and encapsulated rotary screw air compressor, designed for exceptional reliability and low maintenance. Its simple design features up to 40% fewer parts than conventional models, making it ideal for continuous duty applications in the 5 to 10 hp range.

Key Features:

• Simple, Compact Design: Features a small footprint and 40% fewer parts, improving reliability and simplifying maintenance.

• Quiet Operation: An optional sound enclosure reduces noise levels to as low as 68 dBA, making it suitable for point-of-use installation.

• Rotary Screw Reliability: The legendary Sullair Single-Stage Rotary Screw Air End includes patented E-Profile rotors and a rugged bearing design for long bearing life.

• Encapsulated Design: This design minimizes connections and makes maintenance items, such as the separator element, easy to replace, reducing fluid carryover to less than 2 ppm.

Technical Specifications:

• Power: 5-10 hp (4−7 kW).

• Pressure: 125-175 psi (8.6−12.1 bar).

• Flow: 13−36 cfm (0.36−1.01m3/min).

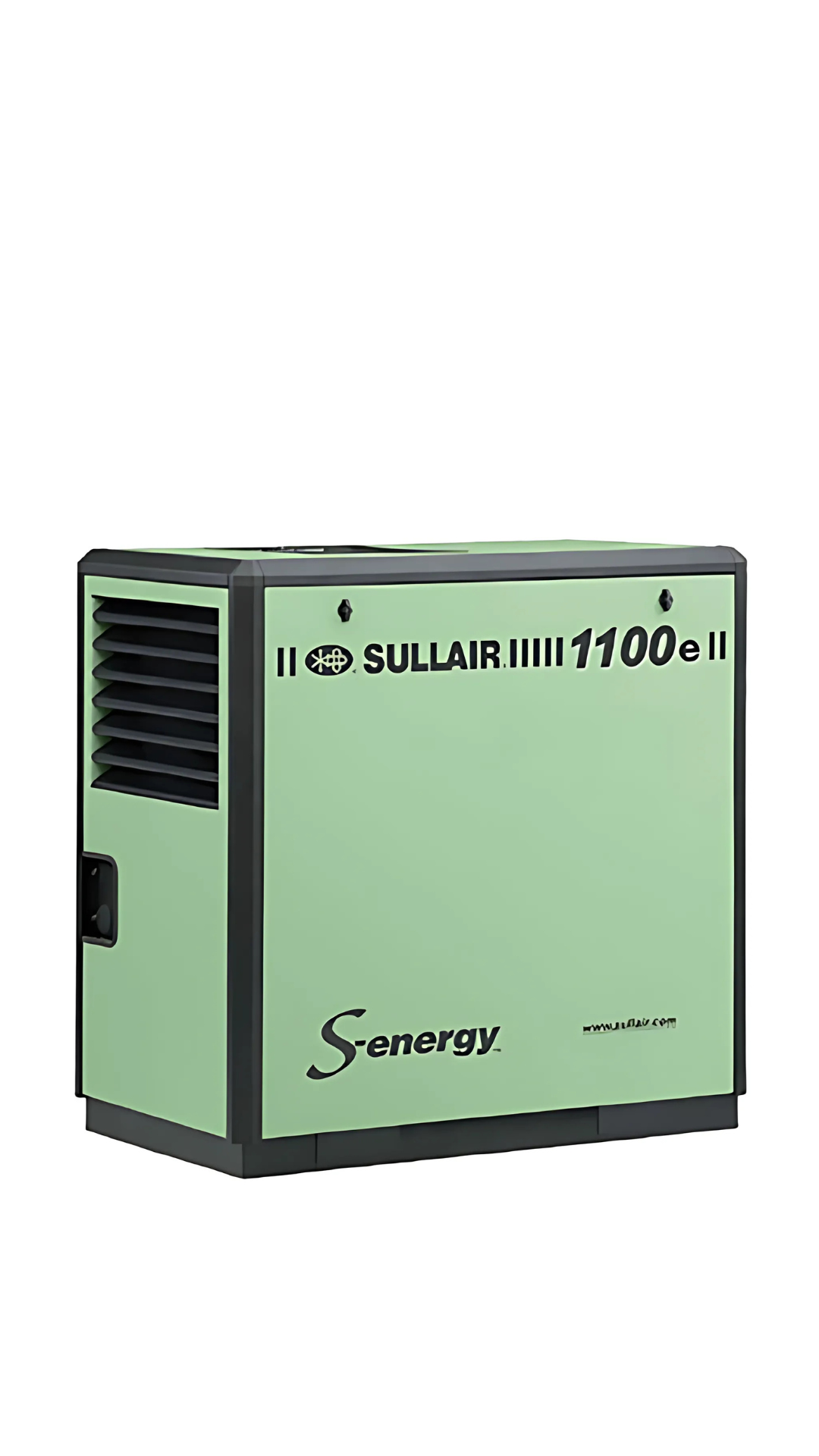

S-energy® Encapsulated (15-25 hp)

S-energy® Encapsulated (15-25 hp)

The S-energy® 15-25 hp series offers superior performance and efficiency, setting new standards in its class. Its robust, maintenance-friendly design is one of the quietest and most compact available, making it suitable for a wide range of industrial environments.

Key Features:

• Quiet Design: Operates as quietly as 66 dBA, allowing for installation almost anywhere in your facility.

• Engineered for Easy Maintenance: Standard maintenance can be performed from one side of the unit , and features like an inverted fluid filter minimize lubricant loss during changes.

• Advanced Controls: The 7-inch Sullair Touch Screen (STS) Controller offers a menu-driven interface with support for sequencing up to 16 compressors and is AirLinx® remote monitoring ready.

• 10-Year Diamond Warranty: Backed by the exclusive 10-year Diamond Warranty, covering the air end for 10 years and major components like the motor and coolers for 5 years.

Technical Specifications:

• Power: 15-25 hp (11−18 kW).

• Pressure: 100-175 psi (7−12.1 bar).

• Flow: 46.4−107.8 cfm (1.31−3.05m3/min).​​​​​

​​​​​​​

S-energy® Encapsulated (25-40 hp)

S-energy® Encapsulated (25-40 hp)

The S-energy® 25-40 hp compressors provide reliable performance and high efficiency in a compact and quiet package. With its small footprint and a design that allows for all maintenance from one side, it is engineered for easy serviceability and uptime.

Key Features:

• Energy Savings: A low-restriction inlet valve and a low pressure drop air-fluid separation system prevent energy loss, helping to reduce life cycle costs.

• Quietest in its Class: Operates as quietly as 67 dBA, making it a leader in its category.

• Advanced Controls: The 7-inch Sullair Touch Screen (STS) Controller is standard, providing easy access to all compressor controls and is AirLinx® remote monitoring ready.

• Engineered for Durability: Features a slow-speed, 1800 rpm cast iron motor with a direct-coupled/flange mounted design for longer life.

Technical Specifications:

• Power: 25-40 hp (18−30 kW).

• Pressure: 100-175 psi (7−12.1 bar).

• Flow: 85−176 cfm (2.40−4.98m3/min).

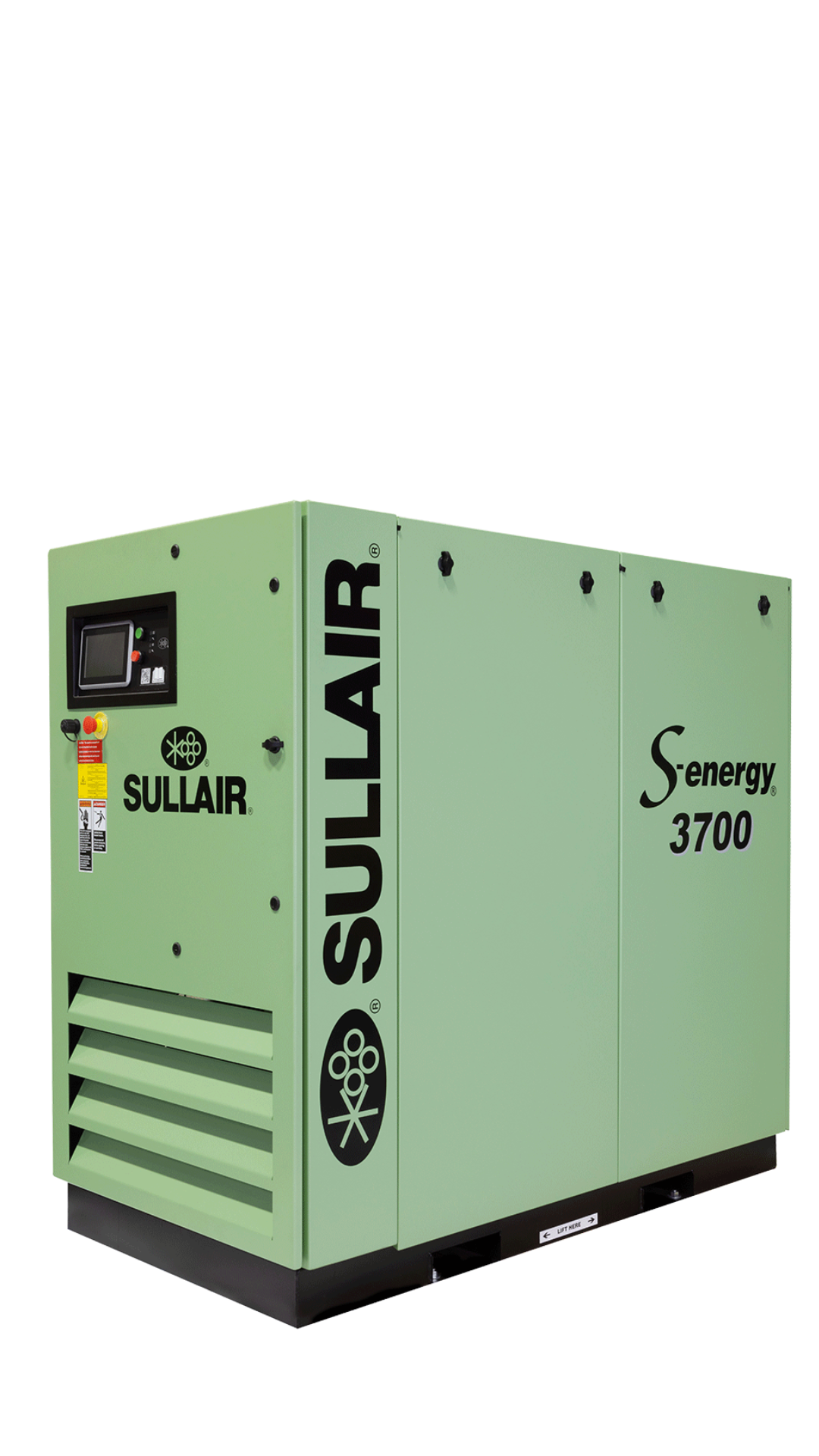

S-energy® Encapsulated (40-60 hp)

S-energy® Encapsulated (40-60 hp)

Sullair S-energy® 40-60 hp compressors are built with a robust, globally recognized air end and are backed by the comprehensive 10-Year Diamond Warranty. They are designed to significantly reduce operating and energy costs throughout their entire life cycle.

Key Features:

• Legendary Air End: Features a highly efficient asymmetric profile and tapered roller bearings for durability.

• High-Efficiency Cooling: An oversized oil/aftercooler with higher cooling capacities and an efficient centrifugal fan help maintain performance even at high ambient temperatures.

• Advanced Controls: The 7-inch Sullair Touch Screen (STS) Controller provides easy access to all key performance parameters, and the units are AirLinx® remote monitoring ready.

• 10-Year Diamond Warranty: Confirms rugged design and covers the air end for 10 years, with other major components covered for 5 years.

Technical Specifications:

• Power: 40-60 hp (30−45 kW).

• Pressure: 100-175 psi (7−12 bar).

• Flow: 163−269 cfm (4.62−7.62m3/min).

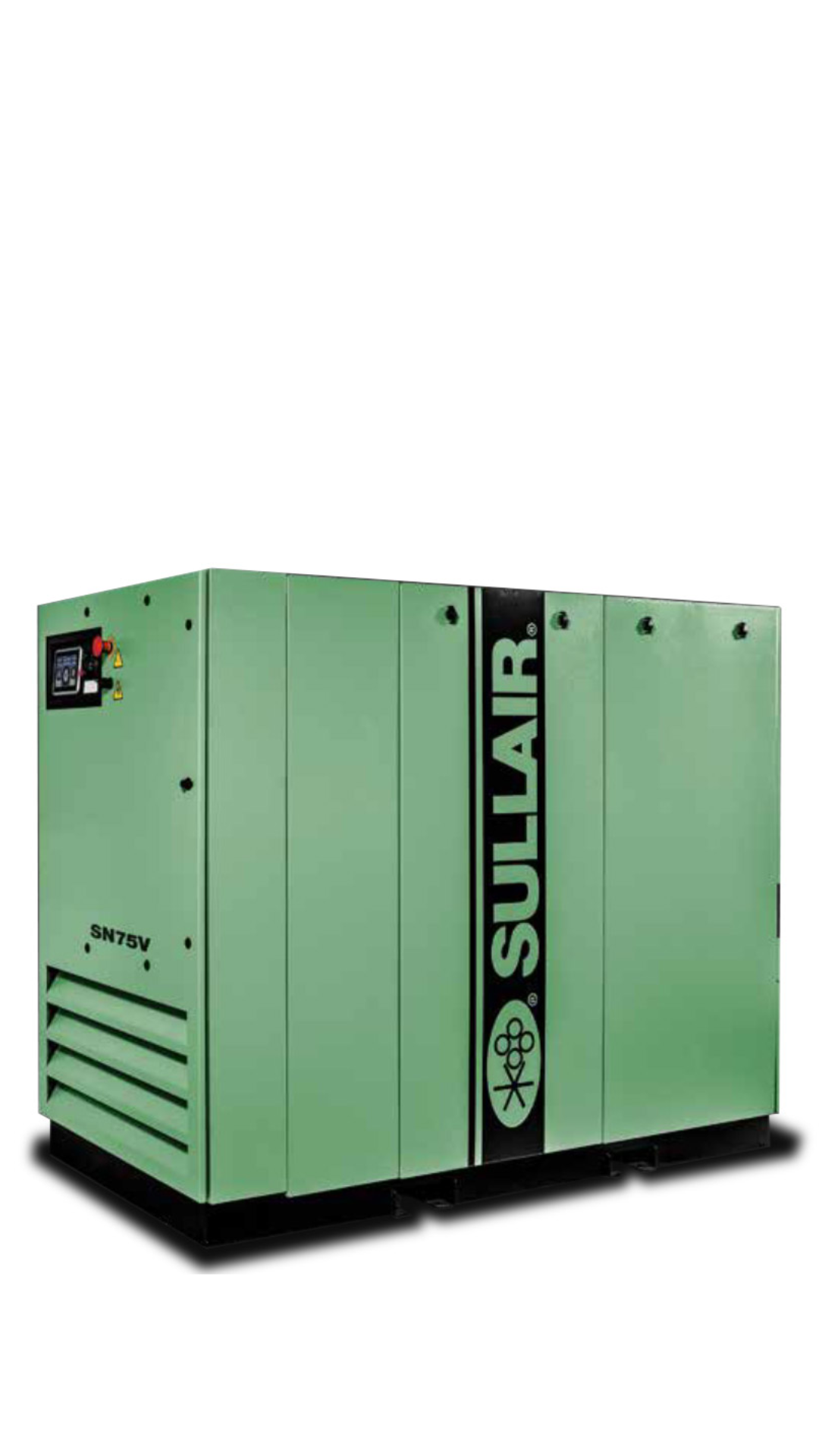

SN Series Lubricated Rotary Screw Air Compressors (75-100 hp)

SN Series Lubricated Rotary Screw Air Compressors (75-100 hp)

The Sullair SN Series offers a powerful combination of high-performance and low energy usage through carefully selected high-efficiency components. With a robust 3G enclosure design, these compressors are engineered for reliable performance, durability, and simplified service.

Key Features:

• Energy-Efficient Design: A premium efficient drive motor and a low-pressure-drop air-fluid separation system help increase energy efficiency and reduce operating costs.

• Legendary Durability: Features the globally-recognized Sullair air end with an efficient asymmetric profile and tapered roller bearings, all backed by the 10-Year Diamond Warranty.

• Quick & Easy Service: Lift-off panels, an easy-access oil sampling valve, and a tilt-and-slide cooler design make maintenance fast and straightforward.

• Advanced Controls: The 7-inch Sullair Touch Screen (STS) Controller provides easy access to all key performance parameters and enables integral compressor sequencing.

• Spiral Valve Technology: The SN series can be equipped with Spiral Valve technology as an option to provide efficient part-load control.

Technical Specifications:

• Power: 75-100 hp (55−75 kW).

• Pressure: 100-175 psi (7−12.1 bar).

• Flow: 277−500 cfm (7.84−14.16m3/min).

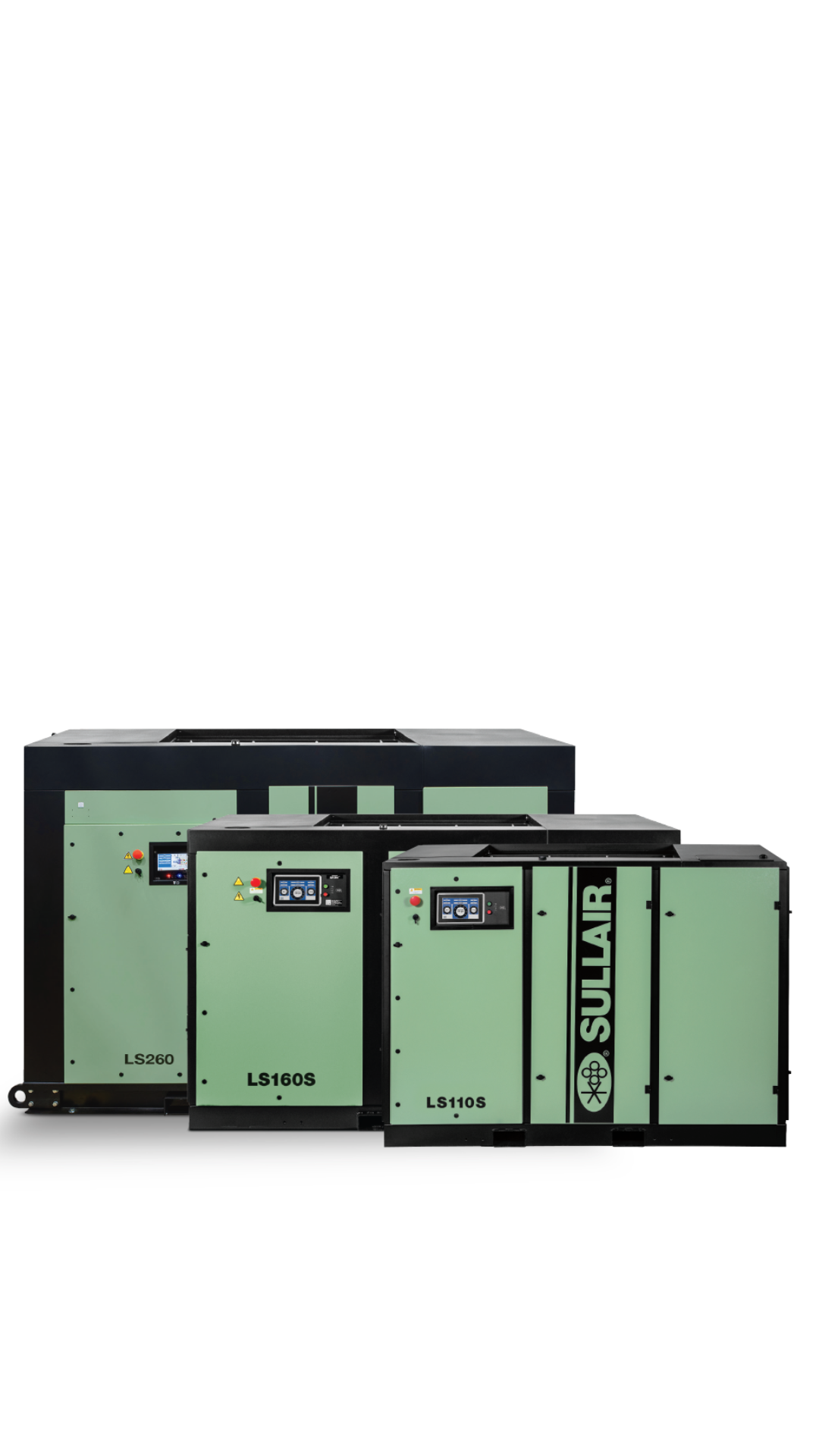

LS Series Lubricated Rotary Screw Air Compressors (125–350 hp)

LS Series Lubricated Rotary Screw Air Compressors (125–350 hp)

The LS Series combines Sullair's legendary durability with unprecedented performance and ease of use. With an updated horsepower range of 125-350 hp, this series is designed to be the most efficient Sullair compressor ever, ideal for heavy-duty applications like steel mills, automotive, and large manufacturing facilities.

Key Features:

• World-Class Efficiency: The next-generation air end is designed with a larger rotor profile and an improved inlet valve to be the most efficient Sullair air end ever.

• Flexible Capacity Control: Offers optional Electronic Spiral Valve Technology or Variable Speed Drive (VSD) to precisely match air supply to demand, reducing energy consumption.

• Advanced Controls: The 10-inch Sullair Touch Screen (STS) Controller provides intuitive operation with integrated graphing and trending, while the optional AirLinx® remote monitoring enables connectivity from any web-enabled device.

• Robust Durability: A slow-running 1800 rpm motor and a full base frame ensure a longer lifespan, even under extreme operating conditions.

• 10-Year Diamond Warranty: All new LS Series compressors with discharge pressures up to 150 psi are covered by a 10-year warranty on the air end and 5 years on major components.

Technical Specifications:

• Power: 125-350 hp (90−260 kW).

• Pressure: 100-200 psi (7−13.8 bar).

• Flow: 469−1875 cfm (13.3−52.5m3/min).

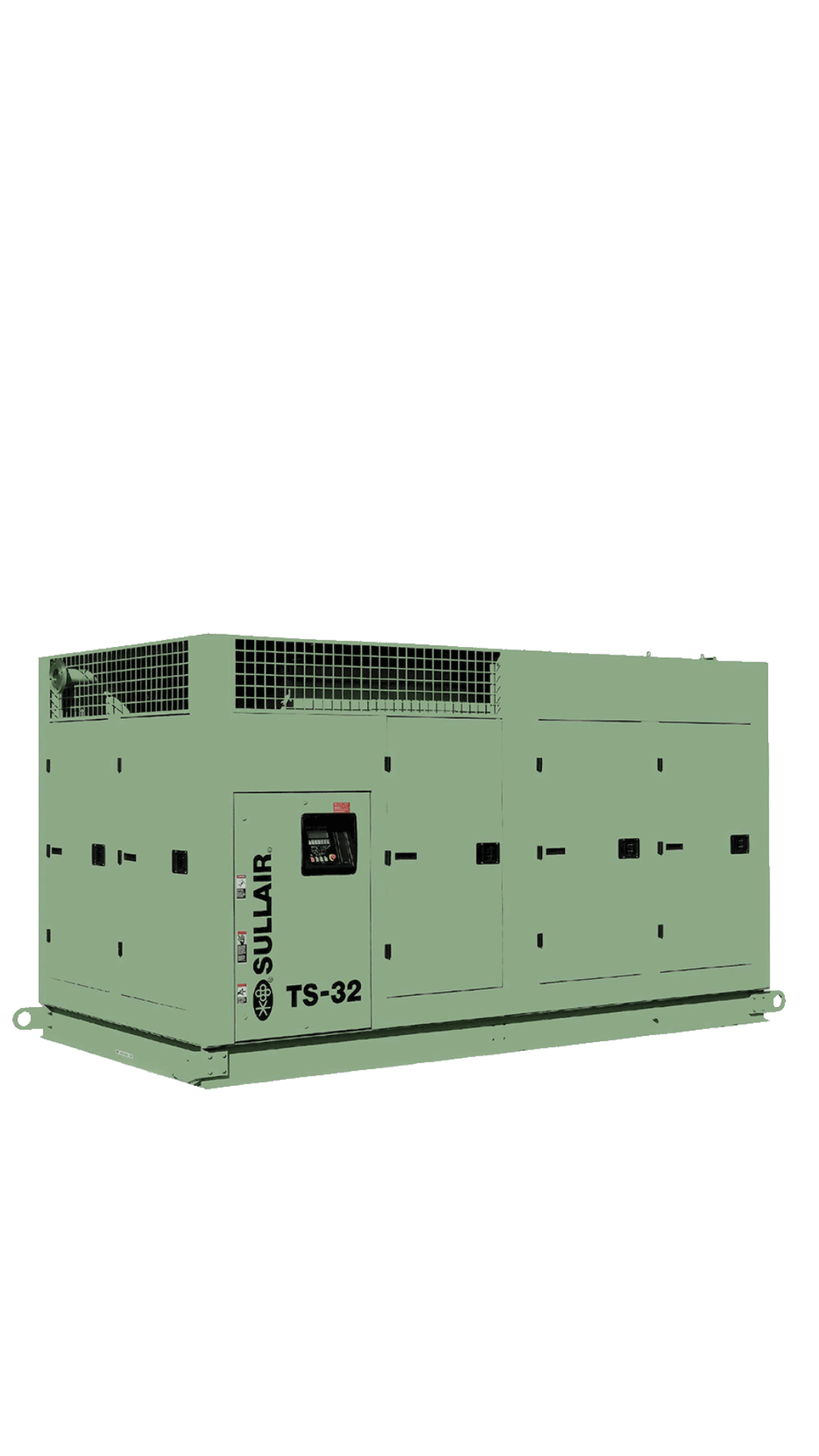

Sullair Two-Stage Rotary Screw Air Compressors (200-600 hp)

Sullair TS Series: Two-Stage Rotary Screw Air Compressors (200-600 hp)

Sullair Two-Stage compressors, now available from 200-600 hp, are engineered for significant energy savings and superior full-load efficiency. By dividing compression work across two stages, these compressors offer a 12-15% power advantage over similarly sized single-stage units, which translates into an investment payback in as quickly as two years.

Key Features:

• Superior Efficiency: The two-stage design delivers more air and reduces power consumption, with a unique rotor arrangement for maximum efficiency.

• Enhanced Durability: A rugged bearing design with tapered roller bearings and cylindrical roller bearings extends component life by dividing compression across two stages.

• Flexible Capacity Control: Can be equipped with Spiral Valve technology or Variable Speed Drive (VSD) to match air supply with demand, reducing power consumption.

• Simplified Maintenance: Features like easy-to-remove panels and a non-lubricated, flexible coupling simplify maintenance and installation.

• 10-Year Diamond Warranty: Backed by a 10-year warranty on the air end and a 5-year warranty on major components for compressors with discharge pressures up to 150 psi.

Technical Specifications:

• Power: 200-600 hp (149−450 kW).

• Pressure: 100-175 psi (7−12 bar).

• Flow: 1681−3000 cfm (47.6−84.9m3/min).

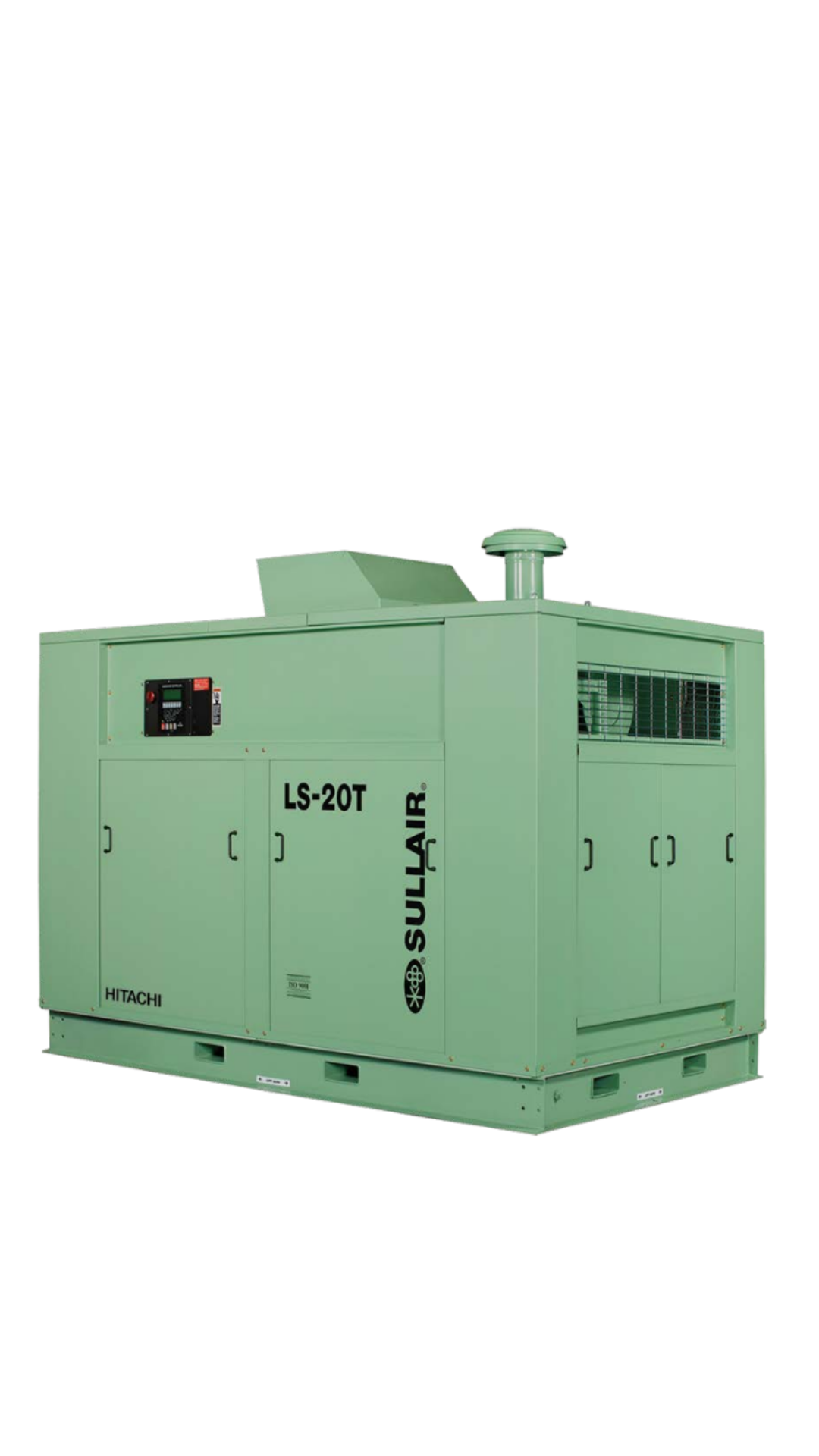

Sullair Two-Stage Extreme Pressure Screw Air Compressors (500 PSI)

Sullair Two-Stage Extreme Pressure Screw Air Compressors (500 PSI)

Sullair LS-20T high-pressure compressors offer exceptional performance for applications requiring up to 500 psi. With a dependable and high-performance two-stage design, these compressors are engineered for maximum power savings, while their robust features ensure efficient operation in the most extreme conditions.

Key Features:

• High-Pressure Performance: Capable of reaching pressures from 225 to 500 psi, ideal for specialized high-pressure applications.

• Power Savings: The two-stage design provides a high-performance air compressor for maximum power savings.

• Precise Control: Equipped with the Sullair Supervisor Controller, which allows for easy pressure adjustment and a capacity modulation range from 100% to 40%.

• Quality Filtration and Cooling: Includes a heavy-duty, two-stage dry type inlet air filter and an efficient cooling system, with remote cooler options for LS-20TS models.

Technical Specifications:

• Power: 200-500 hp.

• Pressure: 225-500 psi.

Sullair TS Series Two-Stage Rotary Screw Air Compressors

Sullair TS Series Two-Stage Rotary Screw Air Compressors

The Sullair TS Series, with a horsepower range of 250-350 hp, represents the next generation of two-stage air compression, offering best-in-class efficiency and legendary Sullair durability. Built on the successful LS Series platform, it delivers superior performance and a revolutionary package design.

Key Features:

• Best-in-Class Efficiency: The most efficient Sullair compressor ever, with a new two-stage air end design that allows for more cooling time between stages and patent-pending interstage cooling for maximum efficiency.

• Legendary Sullair Durability: Features an innovative over/under design with an integrated gearbox and asymmetrical rotors, all protected by a 10-year Diamond Warranty on the air end.

• Flexible Capacity Control: Provides flexible control options, including Variable Speed Drive (VSD) and Electronic Spiral Valve Technology, to perfectly match air supply to demand and optimize energy savings.

• Enhanced Sullair Touch Screen Controller: A 10-inch color screen offers easy, intuitive control, with integrated graphing and trending to analyze performance.

Technical Specifications:

• Power: 250-350 hp (190−260 kW).

• Pressure: 100-200 psi (7−13.8 bar).

• Flow: 984−2033 cfm (28.2−57.6m3/min).
