Blowers

Air Blowers | Compressed Air Blowers


What Is An Industrial Air Blower?



An air blower is a high-pressure air accelerator that uses compressed air to generate a strong air flow. Commonly used in industries such as paper and textile manufacturing, air blowers can also be used for other applications such as drying, cooling, and ventilation in a wide array of manufacturing processes. Air blowers are available in a variety of sizes and designs, including portable and stationary models.



Let us shed some light on AERZEN blowers that are specially designed to be extremely efficient at moving air through a duct. It also provides the air flow required for efficient and cost-effective use of compressed air.



You can contact us today for general queries and product questions or phone us at 1-888-421-3001.

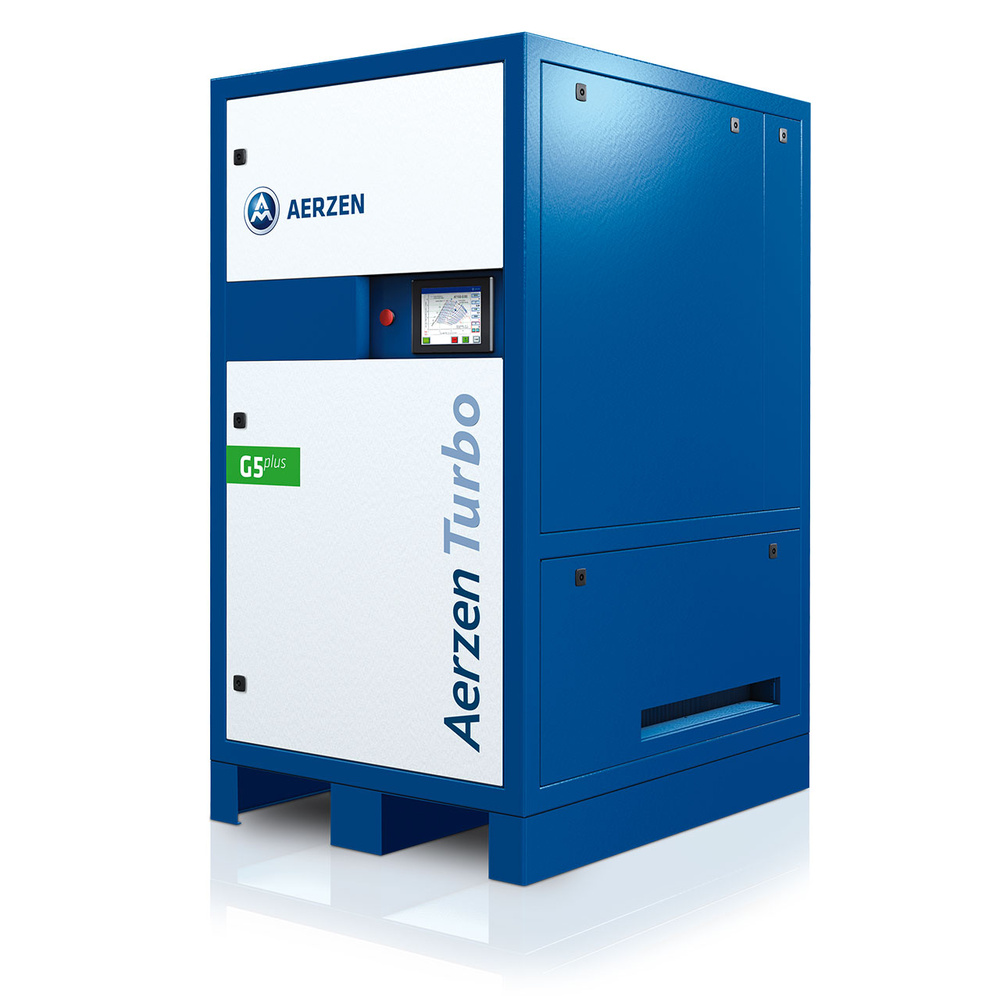

Aerzen Turbo Blower Generation 5plus

AERZEN is one of the world's leading high-speed turbo blower manufacturers. Since 1911, their top priority has been to build high-speed turbo blowers with reliability, energy efficiency, and low life-cycle costs in mind. While AERZEN turbo blowers have a significantly smaller physical footprint than conventional turbo blowers, they offer reliable performance and high efficiency.


AERZEN Turbo Blower Generation 5plus is an excellent choice for high-speed turbo blower. This turbo blower is ideal for volume flows between 360 and 9400 m³/h. It has a significantly smaller physical footprint but boasts up to 10% higher operational efficiency than conventional turbo blowers.


The advantages of AERZEN Turbo Generation 5plus at a glance:

  • 360 to 9400 m³/h air and gas volume flow range
  • Volume flow: 211.896 to 5.532.84 CFM
  • Differential pressure (Δp): 2.9 to 14.5 psi
  • Oil Free compression
  • Speed-controlled
  • Plug-and-play design
  • Up to 10% more efficient than standard turbo technology
  • Extended bearing life due to high-tech AERZEN air bearings featuring double coating for maximum performance and energy efficiency

Contact Blackhawk Equipment for detailed specs, brochures, pricing and customized solutions for a AERZEN Turbo Blower.

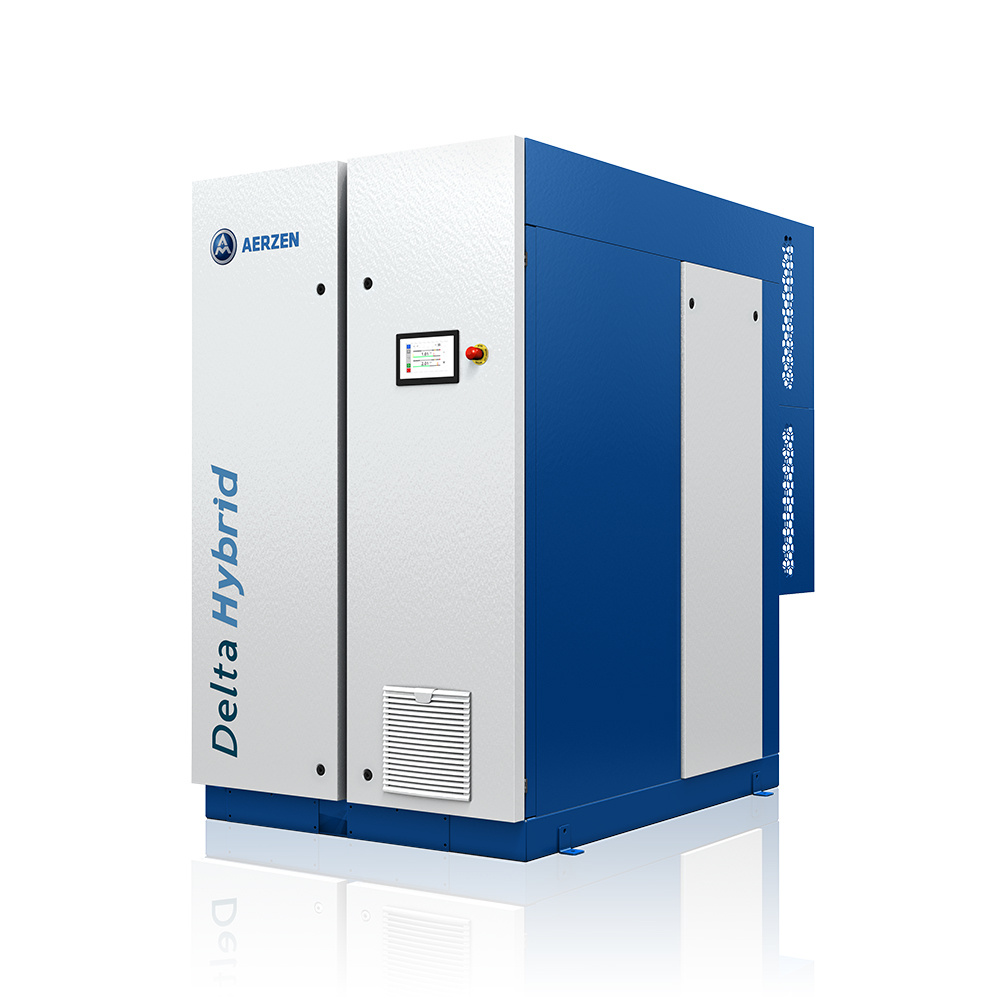

AERZEN Delta Hybrid Direct Driven Screw Blower

The new Delta Hybrid direct driven sizes are the technological evolution of the AERZEN screw blower series. The future has just begun thanks to a super efficient newly designed stage with 3+4 rotors profile and a new drive concept for low pressure applications, a reduced footprint with side by side installation, a no-space adder Plug & Play solution with integrated starter, possibility to install IE5 motors and extended turndown ratio up to 1:5. Let yourself be surprised at how easy and cost-saving it is to generate low pressure compressed air.

The advantages of the AERZEN Delta Hybrid at a glance:

  • Volume flow: 235.44 to 2.825.28 CFM
  • Differential pressure (Δp): 4.35 to 18.13 psi
  • Oil Free compression
  • Highest energy efficiency
  • Reduced life cycle costs
  • Direct drive by means of gears for future-oriented motor use
  • High reliability and durability also under extreme conditions
  • Largest volume flow control range
  • Reduced maintenance


Contact Blackhawk Equipment for detailed specs, brochures, pricing and customized solutions for the AERZEN Delta Hybrid Direct Driven Screw Blower.

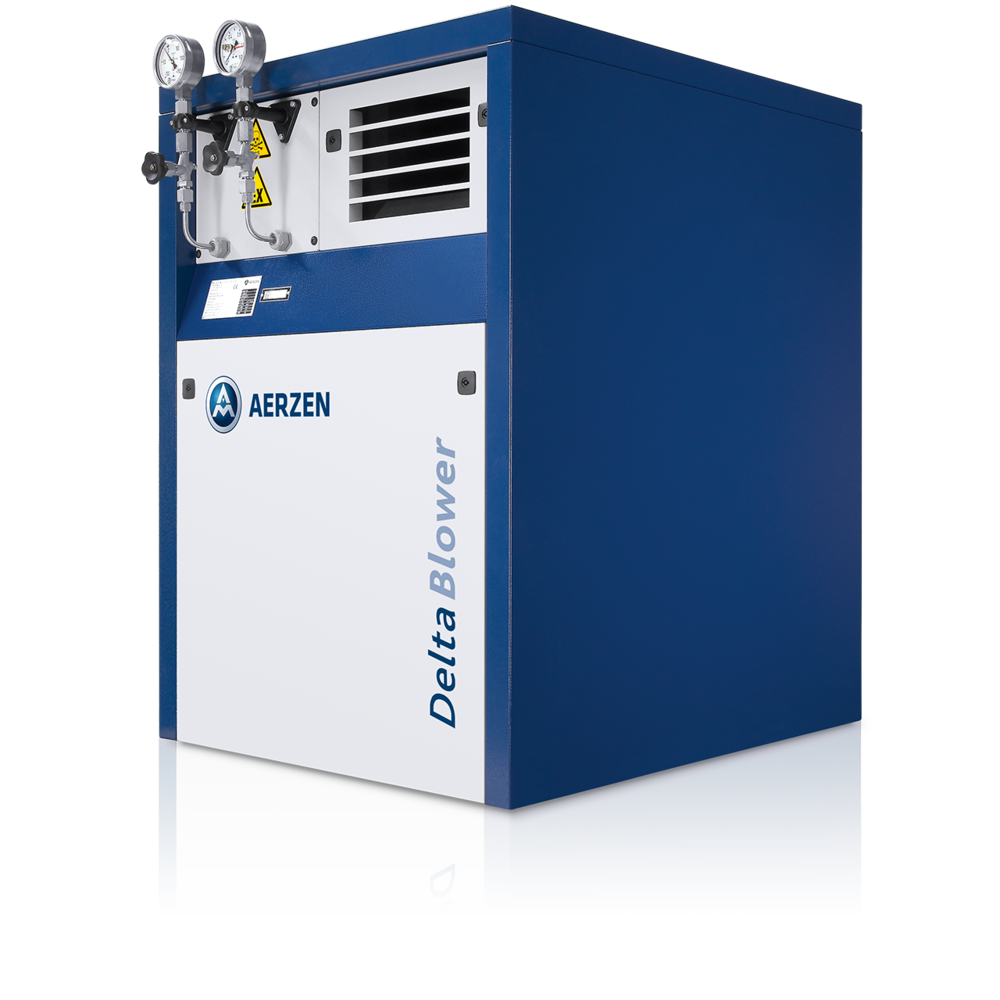

Biogas Blower Delta Blower GM4S

The use of biogas as an energy source will considerably help achieve the environmental objectives set nationally and internationally; be that reducing reliance on nuclear energy or the reduction of CO2 emissions. Specially designed for the biogas market, AERZEN biogas blowers of series GM ensure ultimate reliability and efficiency.

The advantages of AERZEN Biogas Packaged Unit at a glance:

  • Compression of biomethane and biogas
  • 9 sizes for volume flows between 30 m3/h and 12000 m3/h.
  • Volume flow control by controlling rotating speed and bypass.
  • Elevated intake pressure: 0.5 bar g max.

Contact Blackhawk Equipment for detailed specs, brochures, pricing and customized solutions for a AERZEN Turbo Blower.

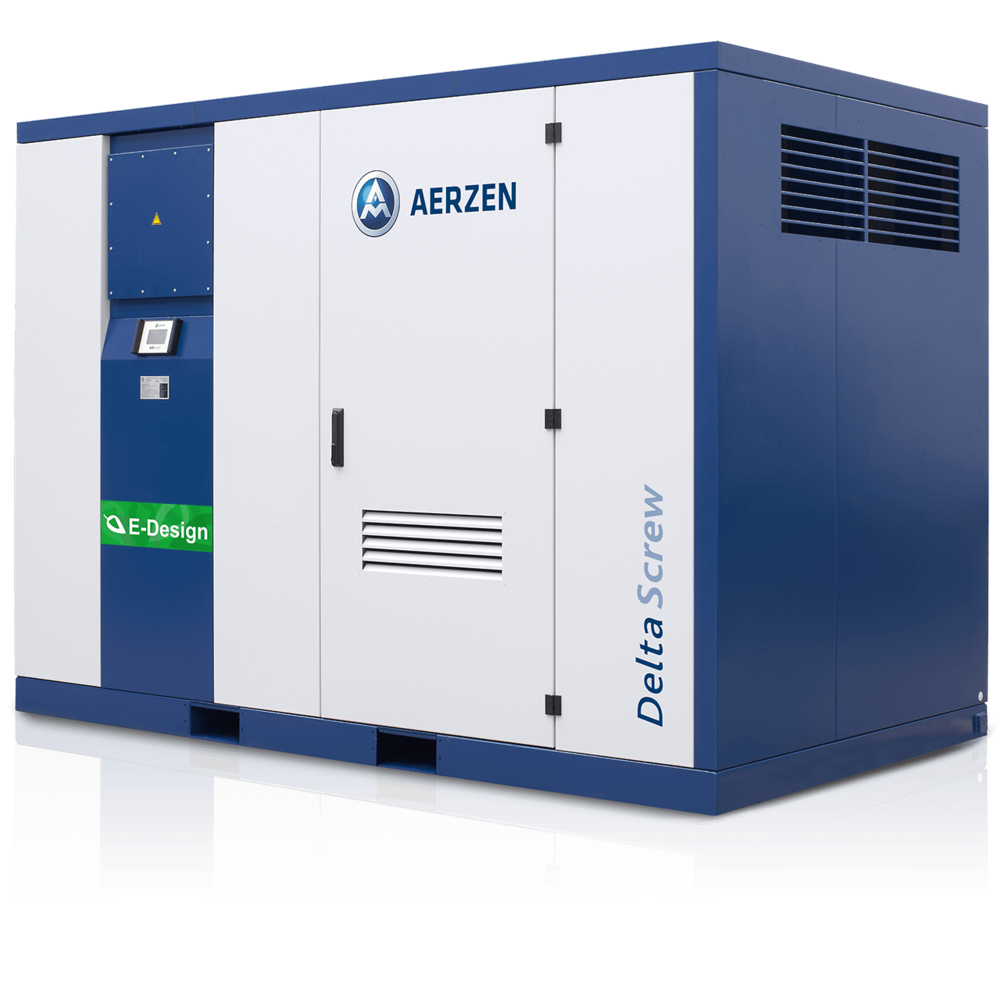

Screw Compressor Delta Screw E-Compressor with direct drive

When it comes to versatility, the compressors in the Delta Screw series exceed all expectations. The truth is that AERZEN’s flexible and highly efficient units offer the widest variety of models available today. The largest number of possible modifications. And the broadest range of accessories. In other words: the right compressor for all process requirements.

The advantages of AERZEN Direct Driven Screw Compressors at a glance:

  • Uniquely broad range of applications
  • Highly efficient
  • Low life-cycle costs
  • Extremely durable and robust
  • Low maintenance needs
  • 100% free of absorption material

Contact Blackhawk Equipment for detailed specs, brochures, pricing and customized solutions for a AERZEN Turbo Blower.

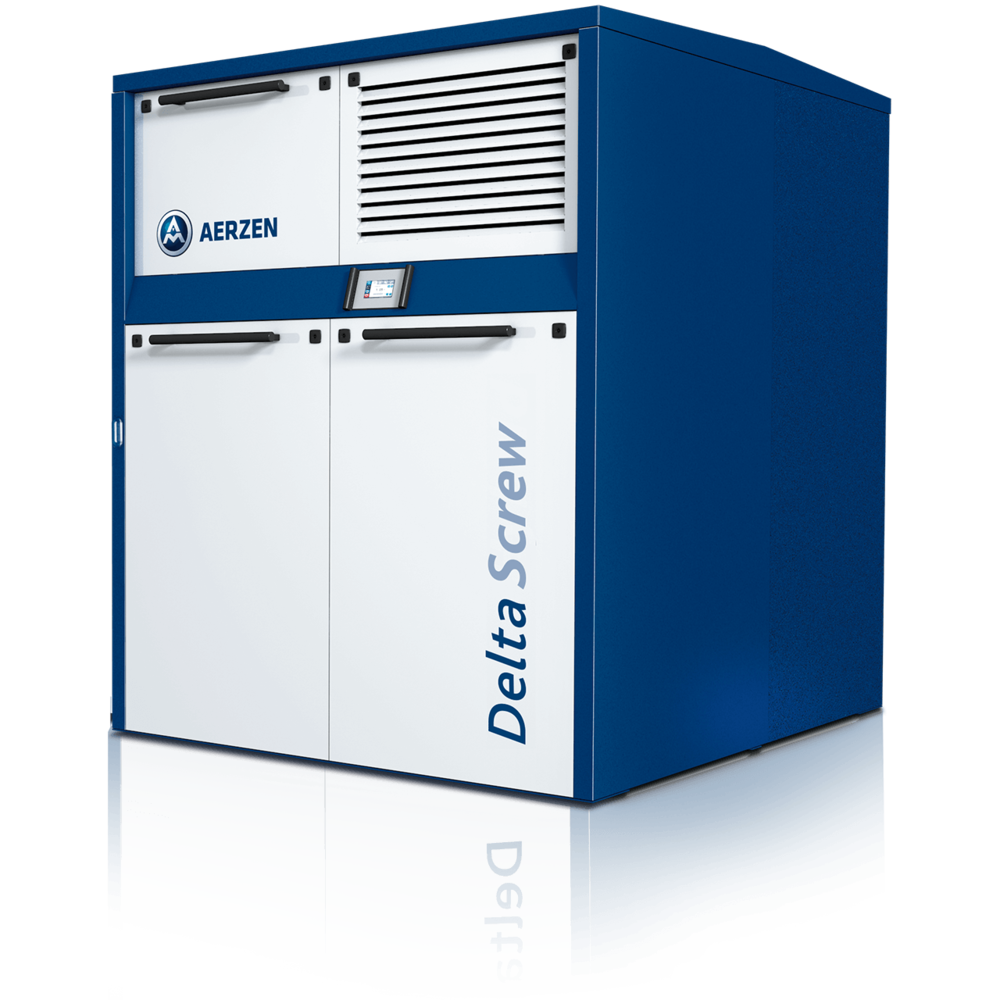

Screw Compressor Delta Screw Generation 5plus with belt drive

The single-stage, oil-free screw compressors in the Delta Screw Generation 5plus series are universal machines. They bundle all the know-how of a world market leader in compressor technology to offer you ‘the user’ maximum efficiency.

The advantages of AERZEN Belt Driven Screw Compressors at a glance:

  • Extensive range of special accessories and various options
  • Lowest sound pressure levels due to the perfect interaction of silencer and acoustic hood
  • Fully integrated compressor package with air end, filter, silencer, noise enclosure and drive train
  • Reflective silencer, free of absorption material
  • Engineering and assembly completely in Aerzen, Germany

Contact Blackhawk Equipment for detailed specs, brochures, pricing and customized solutions for a AERZEN Turbo Blower.

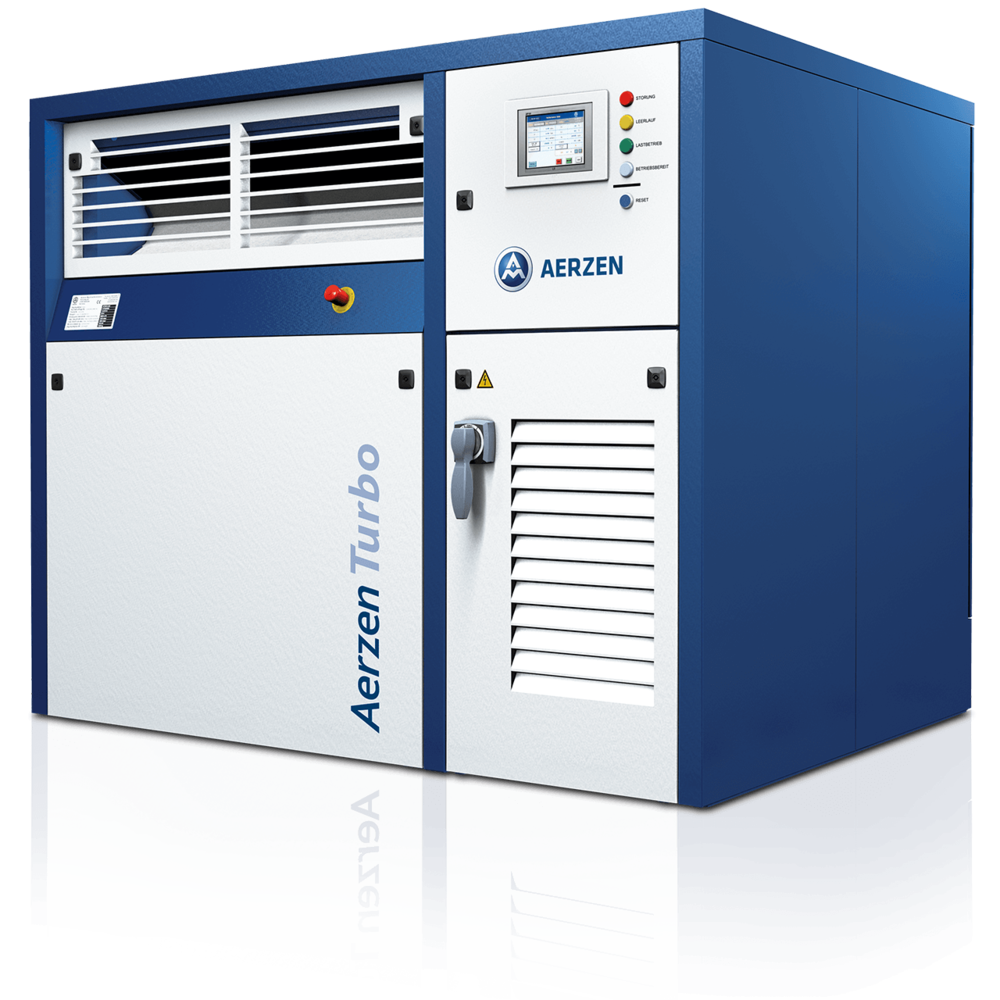

Turbo Blower Aerzen Turbo Generation 5

The Aerzen Turbo with air bearings, have exerted a major influence on technological progress. Particularly compact turbo package for medium and high volume flows. Lowest maintenance and noise emission, no vibrations and highest energy efficiency. Easy installation thanks to a plug-and-play package that integrates all components.

The advantages of AERZEN Turbo Generation 5 at a glance:

  • Maximum efficiency in aeration tanks
  • Up to 30% energy savings
  • Plug-and-play design
  • Speed-controlled
  • Low maintenance requirements

Contact Blackhawk Equipment for detailed specs, brochures, pricing and customized solutions for a AERZEN Turbo Blower.

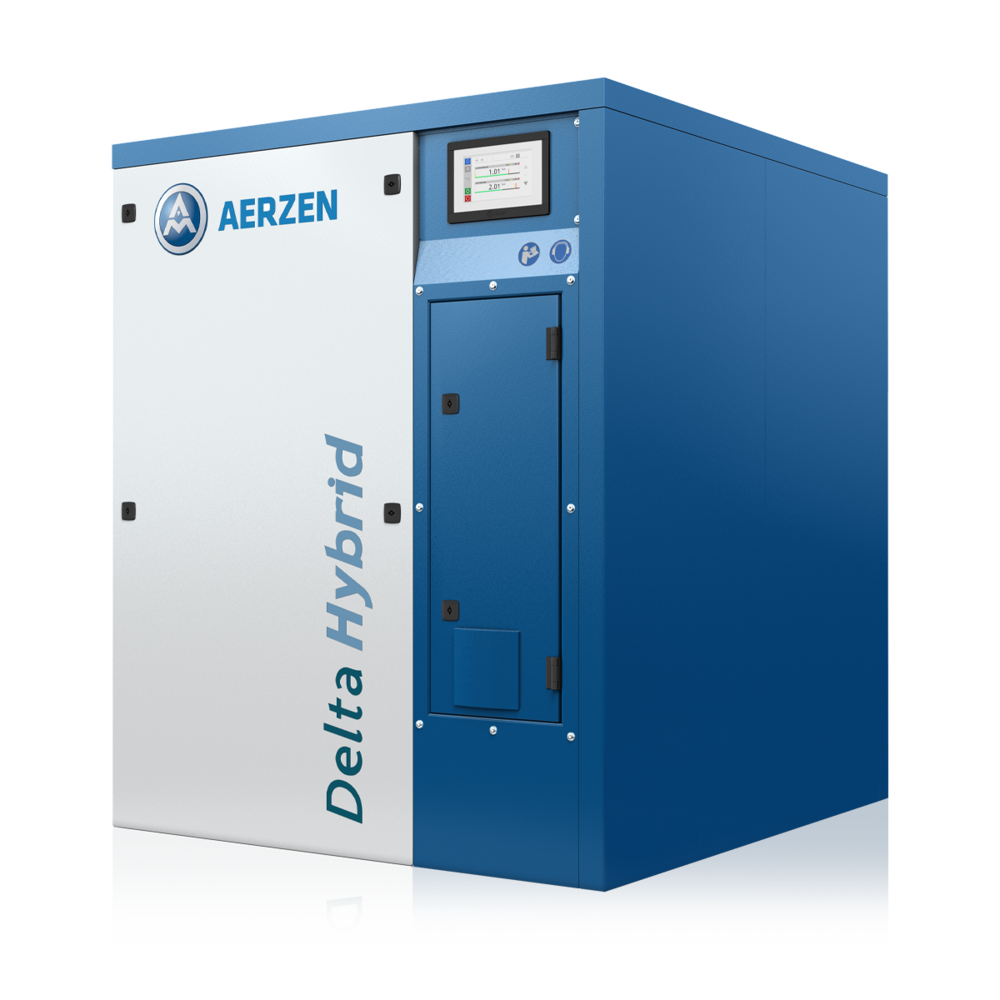

Screw Blower Delta Hybrid

Delta Hybrid is the perfect synthesis of positive displacement blower and screw compressor. Unlike the conventional positive displacement blower (max. 1,000 mbar), the innovative screw blower uses a new and unique 3+4 compressor profile, which is specially designed for low pressure applications up to 1,500 mbar.


Delta Hybrid thus closes the gap in the previous machine mix and offers a wide range of services for precise design to meet the most diverse process requirements. The result is a new level of cost efficiency for compressed air applications.

The advantages of AERZEN Screw Blowers at a glance:

  • Highest energy efficiency
  • Reduced life cycle costs
  • Belt drive: the best mix for efficiency, precise design, flexibility and maintenance
  • High reliability and durability also under extreme conditions
  • Largest volume flow control range
  • Reduced maintenance

Contact Blackhawk Equipment for detailed specs, brochures, pricing and customized solutions for a AERZEN Turbo Blower.

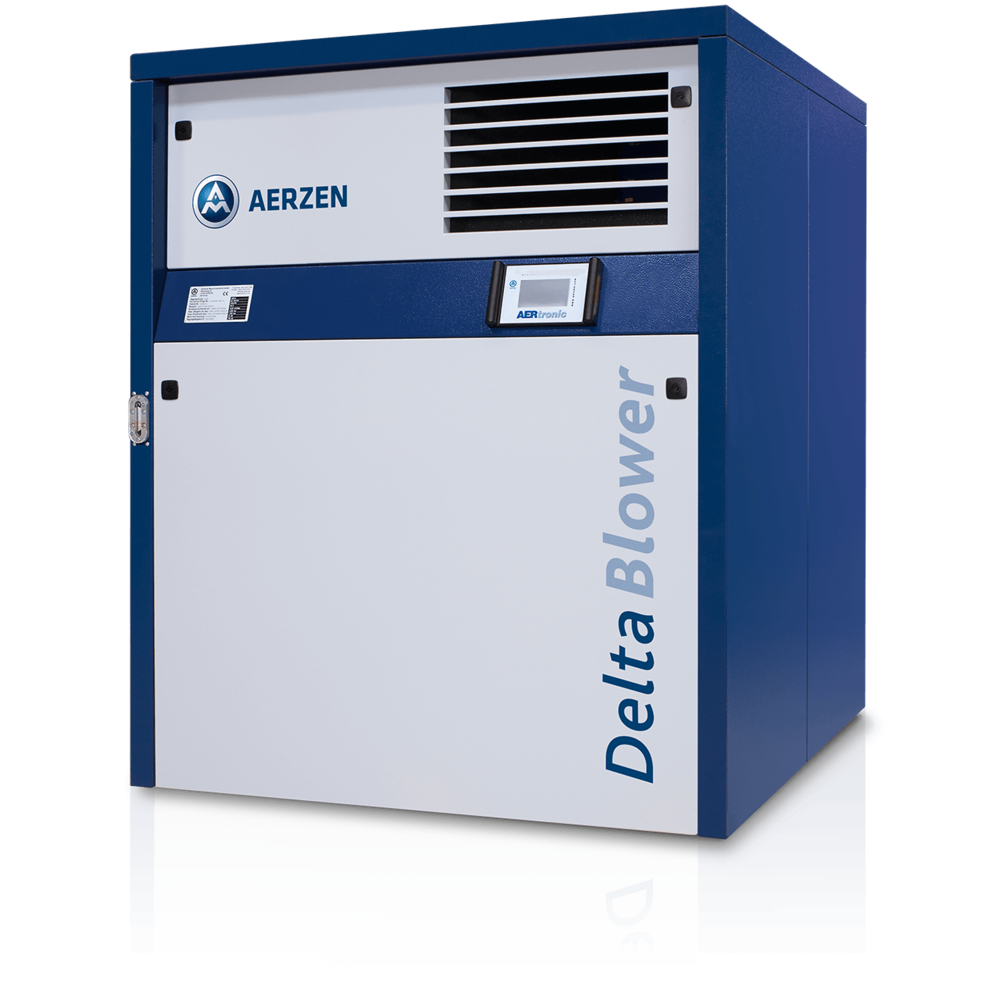

Positive Displacement Blower Delta Blower Generation 5

The versatile and compact Delta Blower Generation 5 units can be deployed in any climate zone on Earth. In the most challenging outdoor environments just as safely as in covered indoor spaces. They can be used as both standalone units or in complex assemblies.

The advantages of AERZEN DELTA BLOWER at a glance:

  • Extremely robust and flexible blower package
  • Easy operation and low-maintenance design
  • Plug & play installation
  • Standard application for energy saving motors of class IE3
  • Low noise levels thanks to the machine’s considerable sound reduction features

Contact Blackhawk Equipment for detailed specs, brochures, pricing and customized solutions for a AERZEN Turbo Blower.

Benefits of Air Blowers



Compact blowers are an important part of the manufacturing process for producing many types of products. They create high-pressure airflow that can be used to dry, cool or clean surfaces. Here are some key benefits to using air blowers in your manufacturing:

  • Air blowers can help improve product quality and increase production efficiency.

  • Air blowers can be used to quickly dry surfaces. This is especially helpful in the production of paint and coatings.

  • Air blowers can also be used to cool hot surfaces. This is often done in the production of plastics and metals.

  • Air blowers can also be used to clean surfaces. This is helpful in the production of food and beverage products.

Blackhawk Equipment is the leading provider of compressed air blowers. We offer a variety of models to meet your needs, including compact blowers for easy maneuverability and high-pressure blowers for demanding applications. Our knowledgeable staff can assist you in selecting the right model for your application and provide detailed specs, brochures, and pricing.



We also offer customized solutions to meet your specific needs. Don’t hesitate to contact Blackhawk today to learn more about our products and how we can help you optimize your manufacturing process.



Features of Industrial Air Blowers

There are many types of air blowers available on the market, each with its own set of features. Here are some of the most common attributes of air blowers:

  • Air flow rate: This is the measure of how much air a blower can move in a given period of time. It's usually expressed in cubic feet per minute (CFM). The higher the CFM, the more powerful the blower.
  • High-pressure blowers: These blowers are designed to generate high levels of steady pressure.
  • High efficiency: Many newer models of air blowers boast high levels of efficiency, meaning they use less energy to produce the same amount of airflow as older models. This can save you money on your energy bill and help reduce your carbon footprint.

Blackhawk Equipment provides the very best heavy-duty AERZEN air blowers for all commercial and manufacturing applications. There are several sizes and options to choose from, so you can get the perfect air blower for your business.
